Oracle database is a cross-platform Relational Database Management System (RDBMS) that can run on various hardware across operating systems, including Windows Server, Unix, and various distributions of GNU/Linux. Oracle is used to store and manage both small and large datasets with optimal speed, efficiency, and security.
Prerequisites
Perform the following steps to configure your Generic Oracle Source:
Create a Database User and Grant Privileges
Connect to your Oracle server as a database administrator (DBA) using SQL Developer or any other SQL client tool and run the following script. This script creates a new database user in your Oracle database with access to the metadata tables and LogMiner. Keeping your privacy in mind, it grants only the necessary permissions required by Hevo to ingest data from your Oracle database.
# Create a Database User
CREATE USER <username> IDENTIFIED BY <password>;
# Grant Privileges to the Database User
GRANT CREATE SESSION TO <username>;
GRANT SELECT ON V_$DATABASE TO <username>;
GRANT FLASHBACK ANY TABLE TO <username>;
GRANT SELECT ANY TABLE TO <username>;
GRANT SELECT ANY TRANSACTION TO <username>;
# Grant Roles to the Database User
GRANT SELECT_CATALOG_ROLE TO <username>;
GRANT EXECUTE_CATALOG_ROLE TO <username>;
# Grant Permission to run LogMiner
GRANT LOGMINING TO <username>;
GRANT EXECUTE ON DBMS_LOGMNR TO <username>;
GRANT EXECUTE ON DBMS_LOGMNR_D TO <username>;
GRANT SELECT ON V_$LOG TO <username>;
GRANT SELECT ON V_$LOG_HISTORY TO <username>;
GRANT SELECT ON V_$LOGMNR_LOGS TO <username>;
GRANT SELECT ON V_$LOGMNR_CONTENTS TO <username>;
GRANT SELECT ON V_$LOGMNR_PARAMETERS TO <username>;
GRANT SELECT ON V_$LOGFILE TO <username>;
GRANT SELECT ON V_$ARCHIVED_LOG TO <username>;
GRANT SELECT ON V_$ARCHIVE_DEST_STATUS TO <username>;
GRANT SELECT ON V_$TRANSACTION TO <username>;
GRANT SELECT ON V_$MYSTAT TO <username>;
GRANT SELECT ON V_$STATNAME TO <username>;
Note: Replace the placeholder values in the commands above with your own. For example, <username> with hevo.
Refer to the table below for more information about these commands:
Command |
Grants access to |
GRANT CREATE SESSION TO <username>; |
Connect to the database and create sessions. |
GRANT SELECT ON V_$DATABASE TO <username>; |
Perform select operation on the V_$DATABASE dynamic performance view. |
GRANT FLASHBACK ANY TABLE TO <username>; |
Perform flashback operations on any table in the database. |
GRANT SELECT ANY TABLE TO <username>; |
Select data from any table in the database. |
GRANT SELECT ANY TRANSACTION TO <username>; |
Query information from any transaction in the database. |
GRANT SELECT_CATALOG_ROLE TO <username>; |
Query various data dictionary and performance views, containing metadata about database objects. |
GRANT EXECUTE_CATALOG_ROLE TO <username>; |
Execute procedures and functions in the data dictionary. |
GRANT LOGMINING TO <username>; |
LogMiner to analyze and extract information from the redo log files. |
GRANT EXECUTE ON DBMS_LOGMNR TO <username>; |
Run procedures and functions from the DBMS_LOGMNR package. |
GRANT EXECUTE ON DBMS_LOGMNR_D TO <username>; |
Run procedures and functions defined in the DBMS_LOGMNR_D package. Note: This privilege is required for starting and stopping LogMiner, adding redo log files for analysis, querying change data, and managing LogMiner sessions effectively. |
GRANT SELECT ON V_$LOG TO <username>; |
Select data from the V_$LOG dynamic performance view. |
GRANT SELECT ON V_$LOG_HISTORY TO <username>; |
Query information from the V_$LOG_HISTORY dynamic performance view. |
GRANT SELECT ON V_$LOGMNR_LOGS TO <username>; |
Query information from the V_$LOGMNR_LOGS dynamic performance view. |
GRANT SELECT ON V_$LOGMNR_CONTENTS TO <username>; |
Select data from the V_$LOGMNR_CONTENTS dynamic performance view. |
GRANT SELECT ON V_$LOGMNR_PARAMETERS TO <username>; |
Select data from the V_$LOGMNR_PARAMETERS dynamic performance view. |
GRANT SELECT ON V_$LOGFILE TO <username>; |
Select data from the V_$LOGFILE dynamic performance view. |
GRANT SELECT ON V_$ARCHIVED_LOG TO <username>; |
Select data from the V_$ARCHIVED_LOG dynamic performance view. |
GRANT SELECT ON V_$ARCHIVE_DEST_STATUS TO <username>; |
Select data from the V_$ARCHIVE_DEST_STATUS dynamic performance view. |
GRANT SELECT ON V_$TRANSACTION TO <username>; |
Select data from the V_$TRANSACTION dynamic performance view. |
GRANT SELECT ON V_$MYSTAT TO <username>; |
Select data from the V_$MYSTAT dynamic performance view. |
GRANT SELECT ON V_$STATNAME TO <username>; |
Select data from the V_$STATNAME dynamic performance view. |
Set up Redo Logs for Replication
A redo log is a collection of log files that record information about modifications made to data objects on an Oracle server instance. Oracle LogMiner uses redo logs to track these modifications and determine the rows requiring updates in the Destination system.
Connect to your Oracle server as a user with SYSDBA privileges using SQL Developer or any other SQL client tool and perform the following steps:
1. Enable Archive Log
Archive logs are essential for backup and recovery processes of a database management system.
Enter the command below to verify the current archive log mode:
SELECT LOG_MODE FROM V$DATABASE;
This query returns either of the following values:
If the archive mode is NOARCHIVELOG
, enable it using the following commands:
-
Enter the command below to initiate the shutdown process without waiting for active sessions or transactions to complete. It forcefully terminates existing connections.
-
Enter the command below to start the Oracle database instance in a mounted state:
-
Enter the command below to alter the database and enable archive log mode. This command instructs the database to start archiving the redo log files:
ALTER DATABASE ARCHIVELOG;
-
Enter the command below to open the database for operations after enabling ARCHIVELOG mode:
The fast recovery area in Oracle serves as a centralized storage space for all database recovery-related files. Consolidating these files into a single location simplifies backup and recovery management.
Set appropriate values for the following parameters:
-
DB_RECOVERY_FILE_DEST_SIZE: Sets the size of the fast recovery area.
-
DB_RECOVERY_FILE_DEST: Sets the location of the fast recovery area. This area contains the redo logs.
-
ARCHIVE_LAG_TARGET: Sets a non-zero target value in seconds for the maximum acceptable delay between log switches.
Configure these parameters using the following commands:
-
Enter the command below to specify the size of the fast recovery area:
ALTER SYSTEM SET DB_RECOVERY_FILE_DEST_SIZE = <size>;
-
Enter the command below to specify the location of the fast recovery area:
ALTER SYSTEM SET DB_RECOVERY_FILE_DEST = '<path>';
-
Enter the command below to specify a non-zero value in seconds to force a log switch:
ALTER SYSTEM SET ARCHIVE_LAG_TARGET = <value>;
Note: Replace the placeholder values in the commands above with your own. For example, <size> with 10G.
The Recovery Manager (RMAN) settings determine how long the database holds backlogs and archive logs.
-
Enter the command below to connect to the RMAN:
RMAN
CONNECT TARGET <username> -- (to connect to your database)
Note: Replace the placeholder values in the commands above with your own. For example, <username> with jacobs.
-
Configure the log retention policy to 3 days (72 hours):
CONFIGURE RETENTION POLICY TO RECOVERY WINDOW OF 3 DAYS;
Note: The minimum value for archive log retention hours is 3 days (72 hours). This avoids any data loss that may occur due to downtimes in the Source database.
4. Enable Supplemental Logging
Supplemental logging ensures that any changes in columns are logged in redo log files, which is essential for LogMiner to access the activity history of a database.
-
Check if supplemental logging is enabled:
SELECT SUPPLEMENTAL_LOG_DATA_MIN FROM "V$DATABASE";
This query returns one of the following values:
-
YES
: Indicates that supplemental logging is enabled.
-
IMPLICIT
: Indicates that supplemental logging is automatically enabled by the database based on certain conditions or configurations.
-
NO
: Indicates that supplemental logging is disabled.
-
If the result of the above query is NO, enable supplemental logging with one of the following commands:
- Enable supplemental logging at the database level for all columns:
ALTER DATABASE ADD SUPPLEMENTAL LOG DATA (ALL) COLUMNS;
Note: Enabling supplemental logging at the database level will increase redo log data.
- Enable minimal supplemental logging at the database level:
ALTER DATABASE ADD SUPPLEMENTAL LOG DATA;
-
Enter the following command to retrieve the status of table-level supplemental logging:
SELECT COUNT(*) FROM ALL_LOG_GROUPS
WHERE LOG_GROUP_TYPE='ALL COLUMN LOGGING'
AND OWNER= '<group_name>'
AND TABLE_NAME='<table_name>';
Note: Replace the placeholder values in the commands above with your own. For example, <group_name> with jacobs.
This returns one of the following values:
-
If the result of the above query is zero, enable supplemental logging for all columns of a table in your Source database which you want to replicate:
ALTER TABLE <SCHEMA_NAME>.<TABLE_NAME> ADD SUPPLEMENTAL LOG DATA (ALL) COLUMNS;
Oracle Buffers
In Oracle, buffers refer to memory storage for caching data to enhance database performance. When LogMiner reads data from redo log files, it utilizes the native in-memory Oracle buffer to cache ongoing transactions (ones that have not been committed or rolled back).
Data Manipulation Language (DML) operations within a transaction are buffered until a commit or rollback is detected. A long-running transaction can have a negative impact on the database performance. It can lead to increased lag in processing change events and memory usage on the database server.
This accumulation of data in the Oracle LogMiner buffers can lead to increased Program Global Area (PGA) memory consumption in your database. Therefore, it is essential to appropriately set the PGA memory size based on your database workload. Read Check PGA/SGA Memory Settings to review the memory settings and configure the PGA_AGGREGATE_LIMIT to prevent server OutOfMemory (OOM) errors.
Only your DBA can determine if your database has long-running transactions with a large number of changes. If so, set the PGA_AGGREGATE_LIMIT to an appropriate value to process these transactions.
5. Check PGA/SGA Memory Settings (Recommended)
In Oracle, the PGA memory settings allow you to manage and optimize memory usage for individual user processes involved in SQL execution.
-
Enter the command below to retrieve information about the initialization parameters ‘pga_aggregate_limit’ and ‘pga_aggregate_target’ from the V$PARAMETER
view:
SELECT NAME, VALUE/1024/1024 as VALUE_MB
FROM V$PARAMETER
WHERE NAME IN ('pga_aggregate_limit', 'pga_aggregate_target');
The following is an explanation of the command above:
-
SELECT NAME, VALUE/1024/1024 as VALUE_MB
: This part retrieves data for the columns NAME and VALUE from the dynamic performance view V$PARAMETER
. It retrieves the NAME
column as is and calculates the VALUE
column divided by 1024 twice to convert the value from bytes to megabytes. It aliases the result as VALUE_MB.
-
WHERE NAME IN ('pga_aggregate_limit', 'pga_aggregate_target')
: This part filters the results to include only the rows where the NAME
column is either pga_aggregate_limit
or pga_aggregate_target
.
-
Enter the command below to monitor the current PGA memory usage in your Oracle database:
SELECT NAME, VALUE, UNIT
FROM V$PGASTAT
WHERE NAME IN ('total PGA inuse','total PGA allocated');
The following is an explanation of the command above:
-
SELECT NAME, VALUE, UNIT
: This part retrieves data for the columns NAME, VALUE, and UNIT from the dynamic performance view V$PGASTAT
. It retrieves the PGA statistic name, its value, and the unit for the value.
-
WHERE NAME IN ('total PGA inuse', 'total PGA allocated')
: This part filters the results to include only the rows where the NAME
column is either total PGA inuse
or total PGA allocated
.
It is important to set up the PGA aggregate limit for managing and controlling memory usage in individual user sessions and queries. Depending on your database workload, you can set the pga_aggregate_limit
parameter to prevent out-of-memory errors. To do this, enter the following command:
ALTER SYSTEM SET pga_aggregate_limit = <new value> SCOPE=BOTH;
Note:
-
Replace the placeholder value in the command above with your own. For example, <new value> with 1G.
-
You can set the above value in one of the following units of measurement:
-
K
represents kilobytes.
-
M
represents megabytes.
-
G
represents gigabytes.
Retrieve the Database Name
The database name represents the unique Oracle database to which Hevo connects for replicating data. To retrieve it, connect to your Oracle server in any SQL client tool as a masteruser
and enter the following command:
SELECT NAME FROM V$DATABASE;
Connect to a Local Database (Optional)
Refer to this section for steps to connect to your local database.
Prerequisites
-
Oracle service is running on your local machine.
-
Data to be loaded to the Destination is available in your Oracle database.
-
You have an account on ngrok and an installed ngrok utility on your local machine. To run ngrok on your local machine, follow these one-time steps:
-
Extract the ngrok utility:
-
On Linux or MacOS, unzip ngrok from a terminal:
-
On Windows, double-click ngrok.zip to extract it.
-
Authenticate ngrok in your local machine:
./ngrok authtoken <your_auth_token>
You can get the auth token from your ngrok dashboard. For example, in the image below, the auth_token starts with 2ig3VXv3v2ZX4LDg
.
Connect to your local database
Perform the following steps to connect to the local database:
-
Log in to your database server.
-
Start a TCP tunnel forwarding to your database port.
./ngrok tcp <your_database_port>
For example, the port address for Oracle is 3306. Therefore, the command would be:
-
Copy the public IP address (hostname and port number) for your local database and port. For example, in the image below, 8.tcp.ngrok.io
is the database hostname and 19789
is the port number.
-
On the Source Configuration page, paste the hostname and port number into the Database Host and Database Port fields, respectively.
-
Specify all other settings and click TEST & CONTINUE.
Perform the following steps to configure Oracle as a Source in Hevo:
-
Click PIPELINES in the Navigation Bar.
-
Click the Edge tab in the Pipelines List View and click + CREATE EDGE PIPELINE.
-
On the Create Pipeline page, under Source Configuration, do the following:
-
In the Selection screen, select Oracle.
-

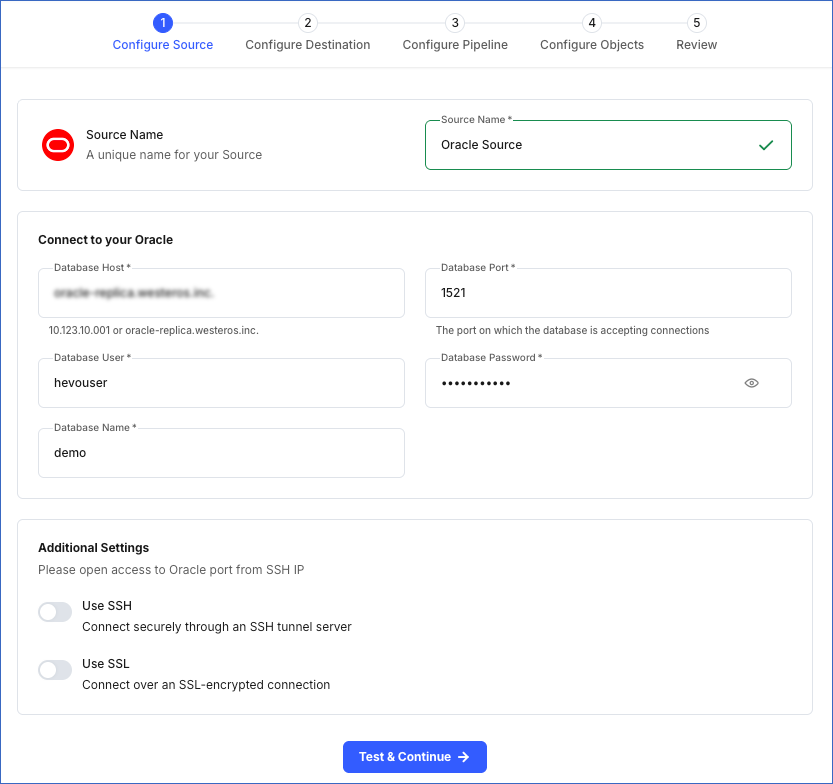

In the Oracle screen, specify the following:
-
Source Name: A unique name for your Source, not exceeding 255 characters. For example, Oracle Source.
-
In the Connect to your Oracle section:
-
Database Host: The Oracle database host’s IP address or DNS. For example, 192.168.2.5.
Note: For URL-based hostnames, exclude the http:// or https:// part. For example, if the hostname URL is https://oracle-rds-1.xxxxx.rds.amazonaws.com, specify oracle-rds-1.xxxxx.rds.amazonaws.com.
-
Database Port: The port on which your Oracle server listens for connections. Default value: 1521.
-
Database User: The user who has permission to read data from your database tables. This user can be the one you created in Step 1 above. For example, hevouser.
-
Database Password: The password of your database user.
-
Database Name: The database from where you want to replicate data. For example, demo.
-
(Optional) In the Additional Settings section:
-
Use SSH: Enable this option to connect to Hevo using an SSH tunnel instead of directly connecting your Oracle database host to Hevo. This provides an additional level of security to your database by not exposing your Oracle setup to the public.
If this option is turned off, you must configure your Source to accept connections from Hevo’s IP address.
-
Use SSL: Enable this option to use an SSL-encrypted connection. Specify the following:
-
CA File: The file containing the SSL server certificate authority (CA).
-
Client Certificate: The client’s public key certificate file.
-
Client Key: The client’s private key file.
-
Click TEST & CONTINUE to test the connection to your Oracle Source. Once the test is successful, you can proceed to set up your Destination.
Read the detailed Hevo documentation for the following related topics:
Data Type Mapping
Hevo maps the Oracle Source data type internally to a unified data type, referred to as the Hevo Data Type, in the table below. This data type is used to represent the Source data from all supported data types in a lossless manner.
The following table lists the supported Oracle data types and the corresponding Hevo data type to which they are mapped:
Oracle Data Type |
Hevo Data Type |
- BIT |
BOOLEAN |
- NUMBER - FLOAT |
DECIMAL |
- BINARY_FLOAT - BINARY_DOUBLE |
FLOAT |
- CHAR - VARCHAR - VARCHAR2 - NCHAR - NVARCHAR - CLOB - NCLOB - ROWID - INTERVAL_DAY_TO_SECOND - INTERVAL_YEAR_TO_MONTH |
VARCHAR |
- TIMESTAMPTZ - TIMESTAMP_LOCALTZ |
TIME_TZ |
- DATE |
DATE |
- TIMESTAMP |
TIME |
- BLOB - RAW |
BYTE_ARRAY |
Read ANSI, DB2, and SQL/DS Data Types to know the data types that Oracle converts from ANSI to its supported ones.
Handling of NUMBER Data Type
In Oracle, NUMBER is a data type that stores fixed or floating-point numbers. To keep a check on the integrity of the input, the NUMBER data type is specified in the format NUMBER (p,s), where s is the scale and p is the precision. Precision (p) refers to the maximum number of significant digits a number can have. Significant digits are the digits in a number carrying meaningful information and exclude leading or trailing zeros. Scale (s) refers to the number of digits to the right of the decimal point. Read Numeric Data Types to know more about how Oracle handles the NUMBER data type.
Note: Hevo does not support NUMBER data types with a negative scale.
Hevo calculates the width of a stored value using the formula, Width = Precision - Scale. Width refers to the total number of digits required to store a number, considering both the integer (digits before decimal point) and fractional (digits after decimal point) parts.
The NUMBER data types are mapped to the following Hevo data types based on the calculated width:
Width |
Hevo Data Type |
< 5 |
SHORT |
< 10 |
INT |
< 19 |
LONG |
> 19 |
DECIMAL |
Note: If precision and scale are not defined for the NUMBER data type, Destination-specific default maximum values for precision and scale are used.
Handling of Unsupported Data Types
If any of the Source objects contain data types that are not supported by Hevo, they are marked as unsupported during object configuration in the Pipeline.
At this time, the following Oracle data types are not supported by Hevo:
- UROWID
- LONG
- LONG_RAW
- XMLTYPE
- Any other data type not listed in the tables above.
Source Considerations
-
Redo Log does not support user-defined data types. Therefore, fields with such data types are not captured in the log and are lost.
-
Hevo uses the Oracle data dictionary to translate redo logs during log switches. When Oracle LogMiner reads a log entry, it refers to the Oracle data dictionary to understand and process the logs. This approach requires minimal database resources but it does not support tracking schema changes.
Note: If your use case involves frequent schema changes and you want Hevo to write the Oracle data dictionary to redo logs to track the schema changes, contact Hevo Support.
Limitations
- Hevo does not set the metadata column __hevo_is_deleted__ to True for data deleted from the Source table using the TRUNCATE command. This action could result in a data mismatch between the Source and Destination tables.
