Apple Search Ads

Last updated on Nov 13, 2023

For creating Pipelines using this Source, Hevo provides you a fully managed BigQuery data warehouse as a possible Destination. This option remains available till the time you set up your first BigQuery Destination irrespective of any other Destinations that you may have. With the managed warehouse, you are only charged the cost that Hevo incurs for your project in Google BigQuery. The invoice is generated at the end of each month and payment is recovered as per the payment instrument you have set up. You can now create your Pipeline and directly start analyzing your Source data. Read Hevo Managed Google BigQuery.

Setup

Data Sync

Prerequisites

The user account has either API Account Read-only or API Account Manager access. This can be provided by your Apple Search Ads admin.
The user account has access to at least one application hosted on the App Store.
You are assigned the Team Administrator, Team Collaborator, or Pipeline Administrator role in Hevo to create the Pipeline.

Obtaining your Apple Search Ads Credentials

You require Apple Search Ads credentials (client ID, team ID, and key ID) to authenticate Hevo on your Apple Search Ads account. These credentials do not expire and can be reused for all your Pipelines.

Note: You must log in as a user with API Account Read-only or API Account Manager access to perform these steps.

To obtain these credentials:

Copy the Public Key from the Source configuration page in Hevo. Refer to section, Configuring Apple Search Ads as a Source to find the key.
Log in to your Apple Search Ads account.
In the top right corner of the page, click on your username and click Settings.
In the Account Settings page, API tab, Client Credentials section, do one of the following:
- Generate the credentials:
  1. Paste the Public Key that you copied from the Hevo UI and click Generate API Client.
  2. Copy the generated clientId, teamId, and keyId.
- Use existing credentials:
  1. Copy the clientId, teamId, and keyId values.

You can use these credentials while configuring your Hevo Pipeline.

Configuring Apple Search Ads as a Source

Perform the following steps to configure Apple Search Ads as the Source in your Pipeline:

Click PIPELINES in the Navigation Bar.
Click + CREATE in the Pipelines List View.
In the Select Source Type page, select Apple Search Ads.

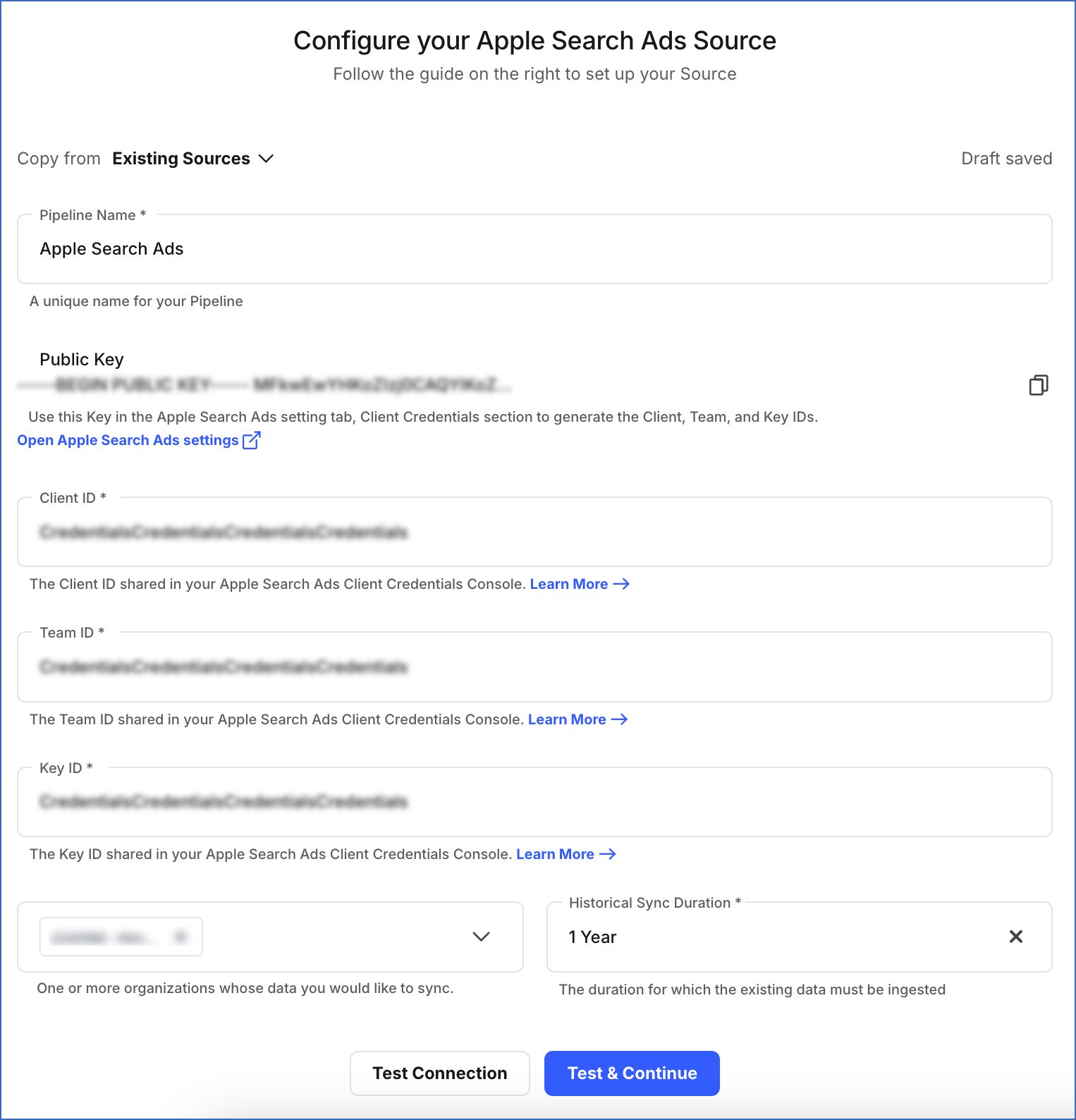

In the Configure your Apple Search Ads Source page, specify the following:
- Pipeline Name: A unique name for your Pipeline, not exceeding 255 characters.
- Public Key (Non-editable): The public key that you used to obtain the Apple Search Ads credentials. This value is pre-filled.
- Client ID: The client ID that you obtained from your Apple Search Ads account.
- Team ID: The team ID that you obtained from your Apple Search Ads account.
- Key ID: The key ID that you obtained from your Apple Search Ads account.
- Organizations: One or more organizations from which you want to ingest the data.
- Historical Sync Duration: The duration for which you want to ingest the existing data from the Source. Default duration: 1 Year.

  Note: If you select All Available Data, Hevo ingests all the data available in your Apple Search Ads account since June 15, 2016.
Click TEST & CONTINUE.
Proceed to configuring the data ingestion and setting up the Destination.

Data Replication

Default Pipeline Frequency	Minimum Pipeline Frequency	Maximum Pipeline Frequency	Custom Frequency Range (Hrs)
6 Hrs	1 Hr	24 Hrs	1-24

Note: The custom frequency must be set in hours, as an integer value. For example, 1, 2, 3 but not 1.5 or 1.75.

Historical Data: The first run of the Pipeline ingests historical data for the selected objects on the basis of the historical sync duration specified at the time of creating the Pipeline and loads it to the Destination. Default duration: 1 Year.
Incremental Data: Once the historical load is complete, all new and updated records are synchronized with your Destination as per the Pipeline frequency.
Refresh: Hevo refreshes the data for all the objects on a rolling basis to update any conversions attributed to clicks within the last 30 days.

Schema and Primary Keys

Hevo uses the following schema to upload the records in the Destination:

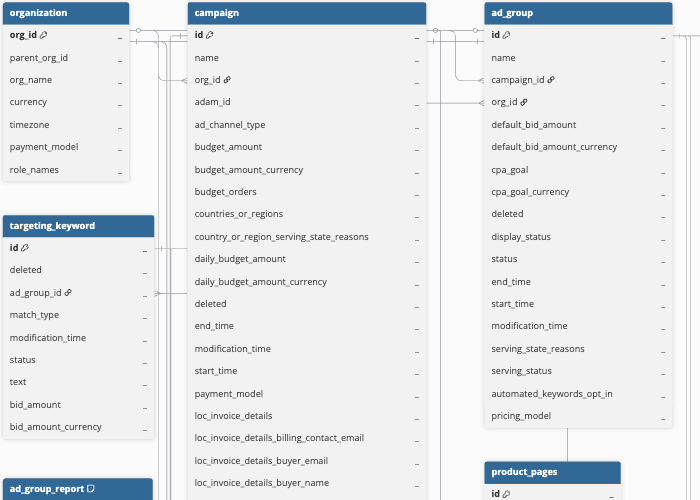

Data Model

The following tables (objects) are created in the Destination when you run the Pipeline.

Note: In Pipelines created from Release 1.87 onwards, Hevo also loads the country_or_region field for all the object reports. If you need this field in an existing Pipeline, you need to recreate the Pipeline.

Table	Description
Ad Group	Contains the ad group entities associated with a campaign, and the ad group for each campaign group.
Ad Group Report	Contains the daily report of each ad group.
Ad Level Report	Contains the ad performance data associated with a campaign.
Campaign Group	Contains the campaign groups and the Access Control List (ACL) of the authenticated Apple Search Ads account.
Campaign	Contains the details of the campaigns assigned to a campaign group.
Campaign Report	Contains the daily report of each searched campaign.
Creative Set Report	Contains the daily report of creative sets used in your campaign.
Custom Product Pages	Contains the details of the custom product pages.
Keyword Report	Contains the daily report of each keyword associated with an Ad Group.
Impression Share Reports	Contains details about how frequently your ads appear in the app store search results in comparison to their competitors’ ads.
Search Terms Report	Contains the daily report of search terms used in the App Store.
Targeting Keyword	Contains the details of the targeting keywords associated with each ad group. Targeting keywords display ads based on the relevant search terms used.

Additional Information

Read the detailed Hevo documentation for the following related topics:

Source Considerations

Apple Search Ads API users can authenticate using only the API keys. Even if an existing certificate is still valid, you need to recreate the Pipeline using the API Keys. This is because Apple Search Ads has deprecated certificate based authentication.
For Impression Share Reports, you can generate a maximum of 10 reports per day and select a date range of up to 30 days for any time period after April 12th, 2020.

Limitations

None.

Revision History

Refer to the following table for the list of key updates made to this page:

Date	Release	Description of Change
Oct-03-2023	NA	Updated section, Obtaining your Apple Search Ads Credentials to reflect the latest Apple Search Ads UI.
May-30-2023	2.13	Updated sections, Data Model with the latest list of objects and their respective descriptions.
Apr-04-2023	NA	Updated section, Configuring Apple Search Ads as a Source to update the information about historical sync duration.
Dec-07-2022	NA	Updated section, Data Replication to reorganize the content for better understanding and coherence.
Apr-25-2022	1.87	- Removed section, Authorize Hevo Using an API Certificate and structured the existing content accordingly. - Updated sections, Schema and Primary Keys and Data Model with the latest list of objects and their respective descriptions. - Added section, Source Considerations.
Apr-11-2022	1.86	Updated sections, Schema and Primary Keys and Data Model with the information relating to the support for the `country_or_region` field.
Oct-25-2021	NA	Added the Pipeline frequency information in the Data Replication section.
Aug-05-2021	1.68	- Added section, Authorizing Hevo Using API Keys - Updated section, Configuring Apple Search Ads as a Source with steps to configure the Source using API Key credentials.
