Schema Mapper Actions

Actions for an Event Type

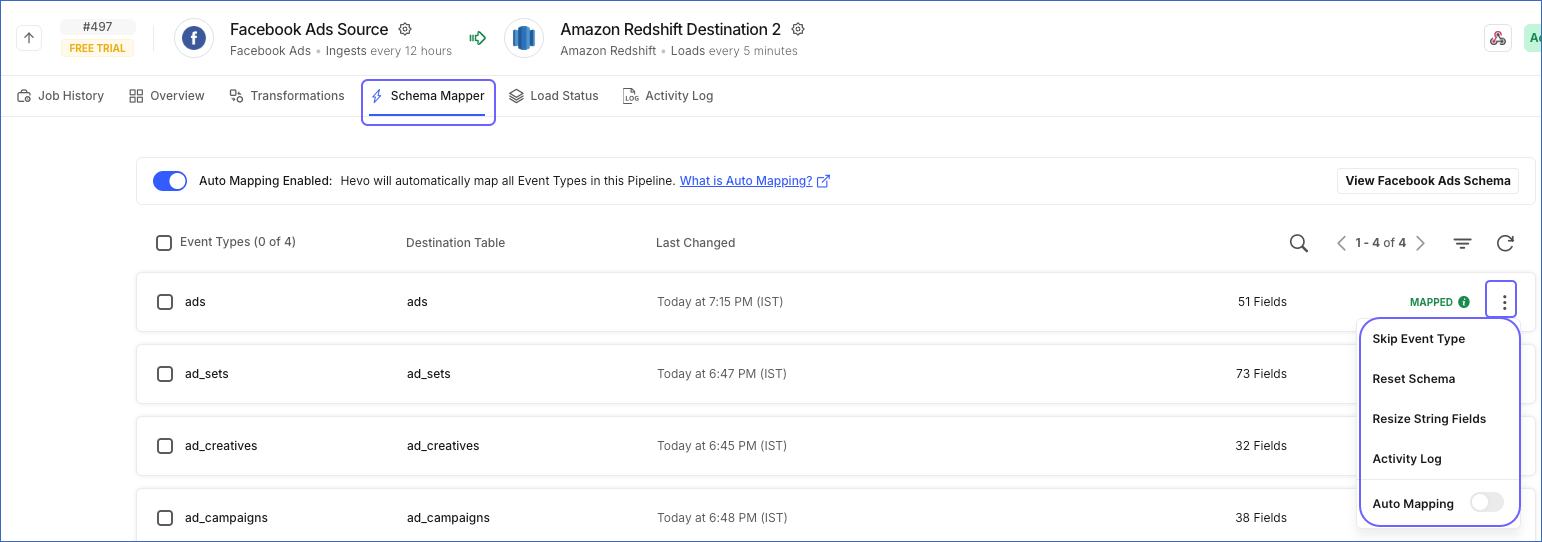

You can take actions on specific Event Types from the Schema Mapper overview page to control how the Events for these load to the Destination. You can access these actions from the Kebab menu provided in the Event Type row.

The following sections describe each action:

Skip Event Type

The Events of the Event Type are skipped and not loaded to the Destination. You can include them again by clicking Include Event Type from the More icon ().

Note: If an Event Type is skipped after the Pipeline is created, any Events ingested from it are loaded to the Destination before it is skipped.

Reset Schema

The current schema defined for the Event Type is discarded and a new schema is generated based on the Events that load subsequently. The new schema factors in any transformations you have built on the data. Suppose you have done some corrections via transformations to remove unneeded fields or change the data type of some fields. You may want to discard the schema that was auto determined by Hevo and start with this new or refreshed schema. At such time, you can use the Reset Schema option. When you reset the schema, all existing mappings are also discarded.

Enable and Disable Auto Mapping

Hevo provides you the option to enable or disable Auto Mapping for the Event Type. When you disable Auto Mapping for an Event Type, its current mapping is retained but its status changes from Auto Mapped to Mapped. Read Auto Mapping Event Types to know how Auto Mapping affects loading data to the Destination.

View Activity Log

Hevo captures information about every action performed for the Event Type. For example, if you skip or include an Event Type, create mapping, or enable or disable Auto Mapping for it, the details are captured in the log. Click the Expand or Collapse icon to view the details of the action. You can filter the log based on severity of the action and the doer.

---

Bulk Actions

Select multiple Event Types in the Schema Mapper page to apply a bulk action to them. Using bulk actions, you can:

• Map and un-map Event Types

• Include and skip Event Types

• Reset the schema for the selected Event Types

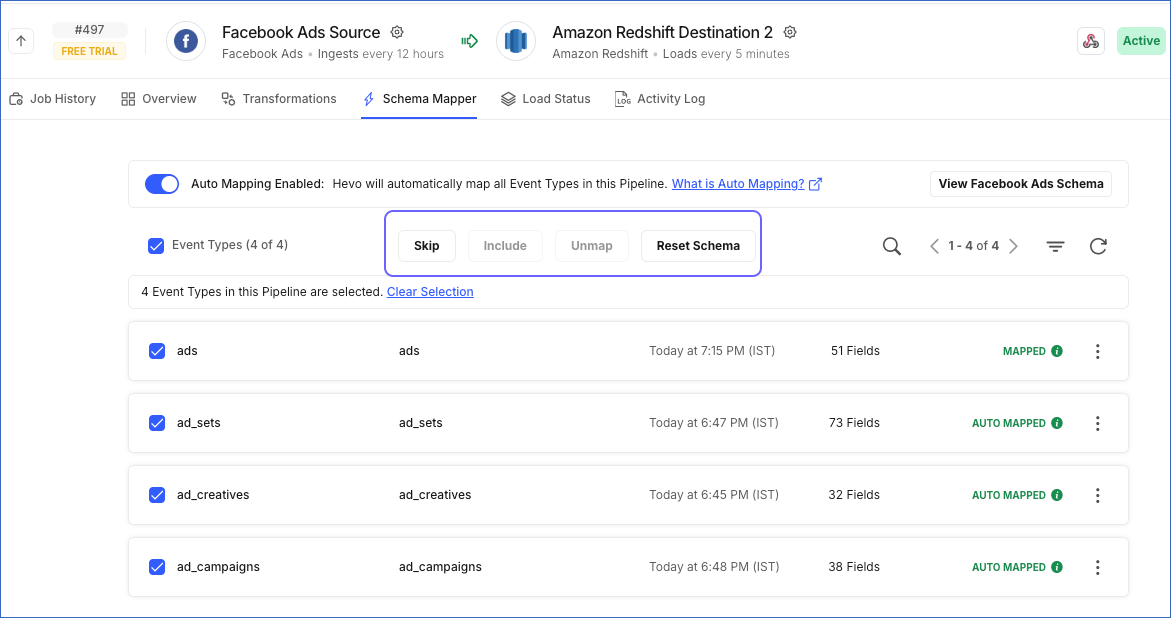

The Bulk Actions toolbar is displayed as soon as you select an Event Type in the Schema Mapper.

All the bulk actions that are applicable to one or more Event Types that you have selected are enabled. You can also see the summary count of the selected Event Types.

If you select more Event Types than which are visible on the current page, all of the bulk actions are enabled. However, the action is performed only on the eligible Event Types. Eligibility is decided based on the current mapping status of the Event Type. Hevo informs you if the bulk action did not get applied to any Event Type. For example, if you select five Event Types of which one is in Skipped status, and apply the SKIP bulk action, then Hevo displays the message, “1 of the 5 selected Event Types were not skippable at the moment.”

The following table lists the valid mapping statuses for applying different bulk actions:

Action	Valid for Status	Not Valid for Status
Skip	Mapped, Auto Mapped, Unmapped	Skipped
Include	Skipped	Auto Mapped, Mapped, Unmapped
Unmap	Mapped	Auto Mapped, Unmapped, Skipped
Reset Schema	Mapped, Skipped, Auto Mapped, Unmapped

---
