Marketo is a marketing automation platform used by B2B and B2C companies to manage and deliver personalized multi-channel programs and campaigns to prospects and customers. Marketo enables companies to curate their raw user data and create programs and focussed campaigns for different marketing activities, from lead generation to marketing ROI measurement, across multiple channels.

With the help of Pipelines in Hevo, you can synchronize Marketo with a database or data warehouse Destination to always have access to the latest data, which you can feed into your enterprise BI solution for custom reporting and analysis. Hevo Pipelines use Marketo’s bulk (preferred) and REST APIs to fetch both historical and changed data, which you can replicate to the Destination after performing any necessary transformations on it.

For creating Pipelines using this Source, Hevo provides you a fully managed BigQuery data warehouse as a possible Destination. This option remains available till the time you set up your first BigQuery Destination irrespective of any other Destinations that you may have. With the managed warehouse, you are only charged the cost that Hevo incurs for your project in Google BigQuery. The invoice is generated at the end of each month and payment is recovered as per the payment instrument you have set up. You can now create your Pipeline and directly start analyzing your Source data. Read Hevo Managed Google BigQuery.

Prerequisites

You are assigned the Team Administrator, Team Collaborator, or Pipeline Administrator role in Hevo to create the Pipeline.

Setup

Data Sync

Configuring Marketo as a Source

To configure Marketo as a Source:

Obtain authenticated access credentials for your Marketo instance.

Note: While creating a new role, you must either individually select all Read-Only privileges or provide all Access-API privileges.
Click PIPELINES in the Navigation Bar.
Click + CREATE in the Pipelines List View.
In the Select Source Type page, select Marketo.

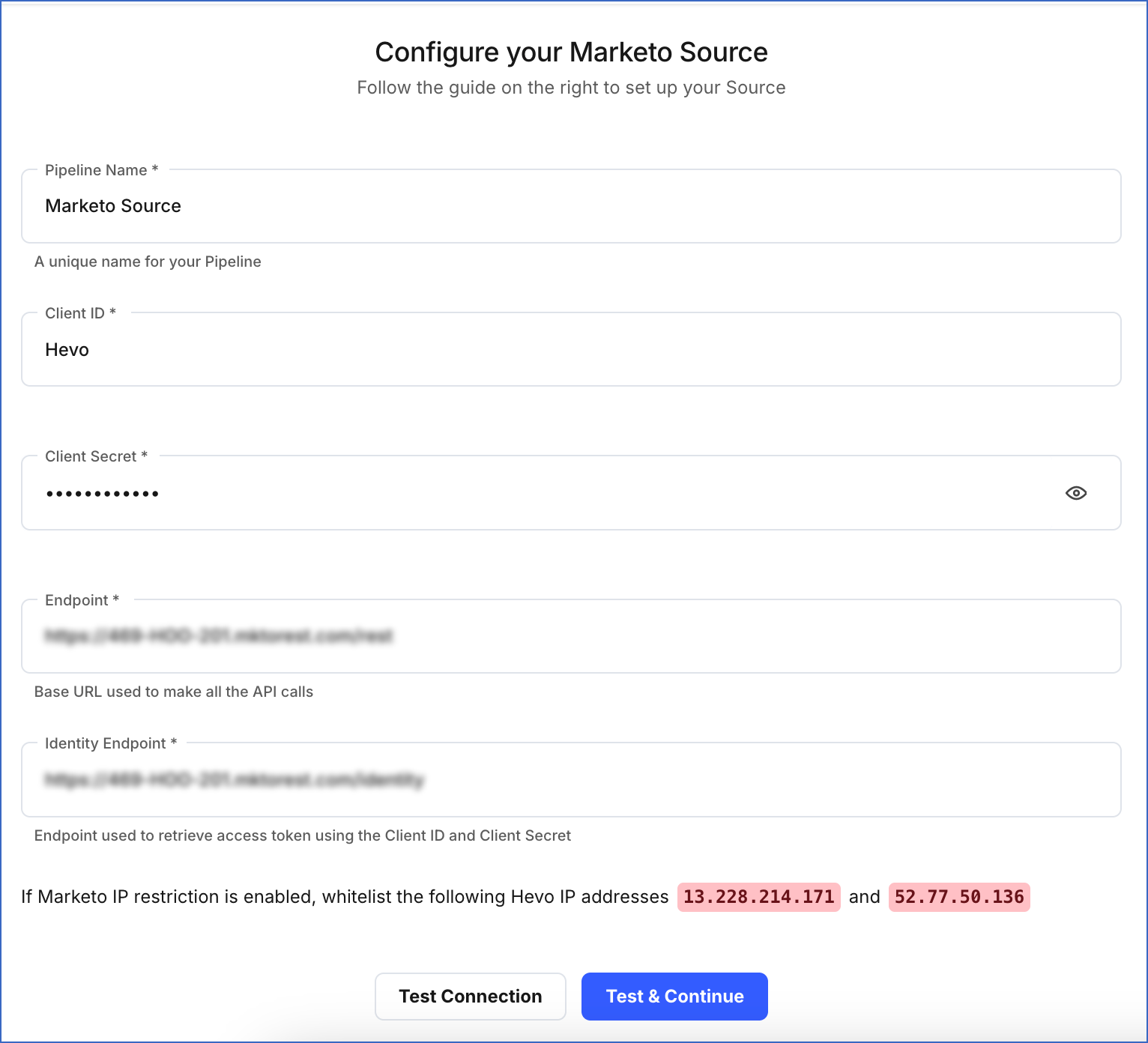

In the Configure your Marketo Source page, specify the following:
- Pipeline Name: A unique name for the Pipeline, not exceeding 255 characters.
- Client ID - Available at the newly created service.
- Client Secret - Available at the newly created service.
- Endpoint - The base URL used to make all the API calls.

  Example: https://469-HOO-201.mktorest.com/rest
- Identity Endpoint - The endpoint used to retrieve access tokens using the Client ID and Client Secret.

  Example: https://469-HOO-201.mktorest.com/identity
Click TEST & CONTINUE.
Proceed to configuring the data ingestion and setting up the Destination.

Note: If IP restriction is enabled in your Marketo account, you must either whitelist Hevo IPs or disable IP restriction to allow Hevo to make API calls.

Marketo API Limits

Marketo imposes strict limits on the API calls you can make within a given time frame to retrieve the data. Some of these include:

Rate Limit: Maximum of 100 API calls per 20 seconds per instance.
Concurrency Limit: Maximum of 10 concurrent API calls.
Daily Quota: Up to 50,000 API calls per day with a max export of 500 MB for bulk jobs for paid subscription (quota resets daily at midnight CST).

Data Ingestion using Bulk APIs

The Hevo connector uses Bulk APIs by default for all Marketo objects that allow this, namely, Program members, Activities and Leads. As a result, Hevo can minimize the number of API calls, while maximising the number of Events fetched per API call, and thereby, help you to remain within the imposed limits to the extent possible. This becomes specially useful while retrieving historical data.

Bulk APIs in Marketo uses the same permissions as the REST APIs, therefore, the job or API type that is running is transparent to you except for the API endpoint.

Compared to a REST API, for a bulk extract:

The Hevo connector submits the job for the data you need, with the required metadata, to Marketo.
Marketo queues and runs the job.
Hevo queries for the status intermittently and when the job completes, Hevo makes one single call to fetch the data, extract the input stream, and process the records in order.

See Appendix 1 - Destination Tables for the list of Marketo objects that allow bulk operations.

Data Replication

Default Pipeline Frequency	Minimum Pipeline Frequency	Maximum Pipeline Frequency	Custom Frequency Range (Hrs)
3 Hrs	3 Hrs	48 Hrs	3-48

Note: The custom frequency must be set in hours, as an integer value. For example, 1, 2, 3 but not 1.5 or 1.75.

Hevo ingests the data from Marketo as follows:

Historical Data: In the first run of the Pipeline, Hevo ingests the data of the past one year, a month at a time, for the selected objects using the Recent Data First approach.
Incremental Data: Once the historical load is complete, all new records are synchronized with your Destination as per the Pipeline frequency.
Data Refresh: The data for the past three months is ingested on every run to ensure that your data is up to date and any data freshness issues are overcome.

Refer to the table below for the type of data that is fetched for each object.

Data Type	Object Names	Schedule	Additional Information
Historical	Activities	During the first run of the Pipeline
Incremental	Activities, Activity Types, Campaigns, Leads, Programs	During each run of the Pipeline	For the Campaigns object, data for the past 12 months is fetched on the first run.
Refresh Data	Leads	Every 24 hours post-completion of ingestion	Ensures that leads, opportunity, opportunity roles, and salespersons data is up to date.

Note: The time taken for the Historical data load is determined by the amount of data and processing time for the ingestion from Marketo.

Schema and Primary Keys

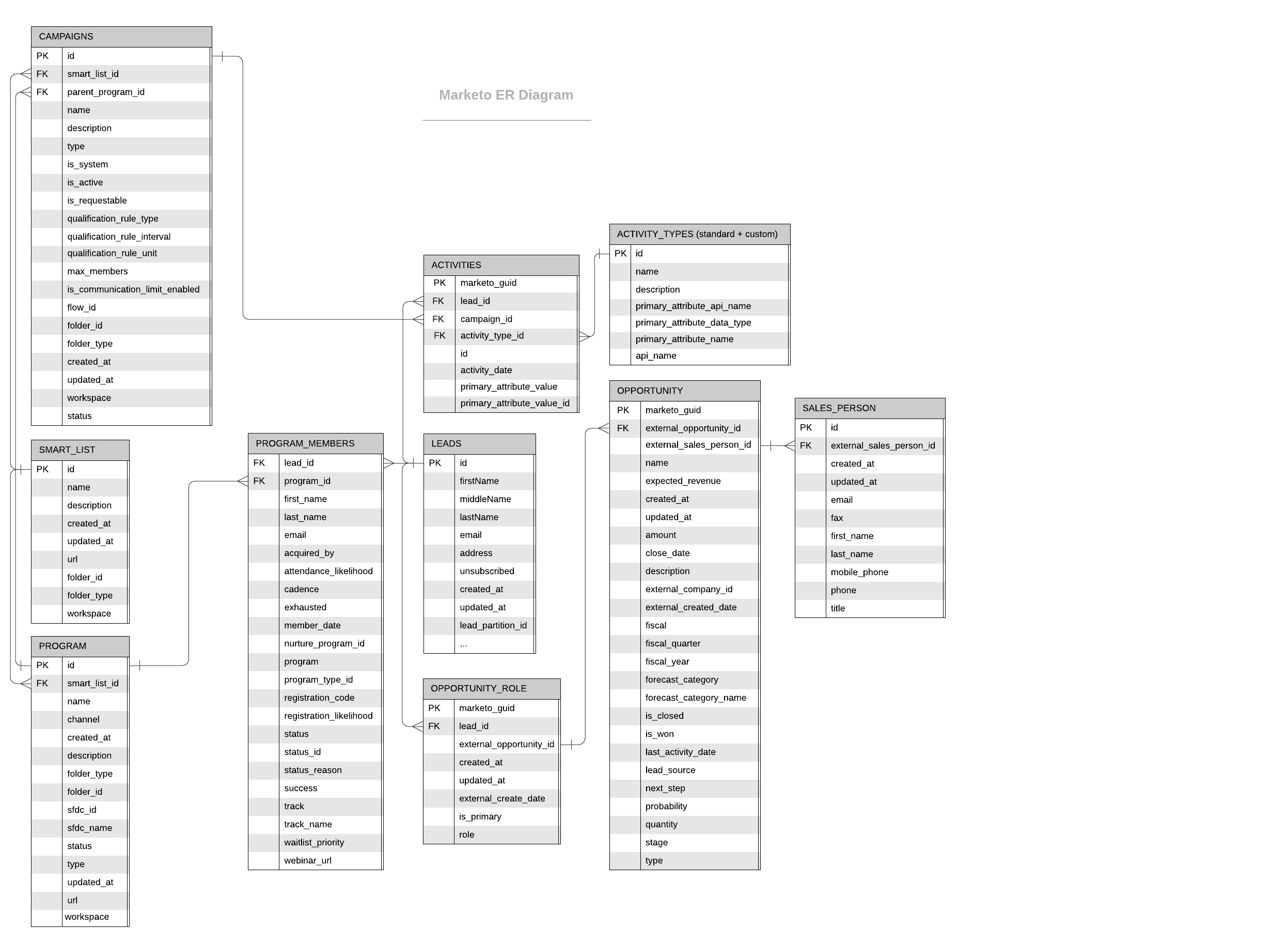

Hevo uses the following schema to upload the records in the Destination database:

Data Model

The following is the list of tables (objects) that are created at the Destination when you run the Pipeline:

Object	Mode	Description
Activities	Incremental	Contains details of all the events or happenings regarding leads in your Marketo account. For example, opening an email and clicking a link, submitting a form, and visiting a web page.
Activity New Lead	Full Load	Contains details about a new lead added to the Marketo database.
Campaign	Incremental	Contains details of the events executed to increase engagement and streamline communications with leads and existing customers.
Leads	Incremental	Contains details of prospective customers.
List	Full Load	Contains details of the leads present in a database in the Marketo account.
List Membership	Incremental	Contains details of the lists that a lead is a member of.
Opportunity Role	Incremental	Contains details of the relationship between an opportunity and a lead and the function of this lead in the organization.
Opportunity	Incremental	Contains details of a potential sales deal or a lead that is identified as a potential customer.
Program Membership	Full Load	Contains details of the membership of a person in different programs.
Program	Full Load	Contains details of the marketing activities organized and executed in an organization. For example, campaigns, events, webinars, and email drip campaigns.
Sales Person	Incremental	Contains details of the sales people who are in charge of leads, and who remain in contact with them for selling the product.
Smart List	Incremental	Contains the list of specific leads and groups that can be searched in your Marketo account using filters.

Additional Information

Read the detailed Hevo documentation for the following related topics:

Revision History

Refer to the following table for the list of key updates made to this page:

Date	Release	Description of Change
Feb-07-2023	2.07	Updated section, Data Model to add the List and List Membership objects. - Updated section, Schema and Primary Keys to add the new ERD link with the List and List Membership objects.
Dec-07-2022	NA	Updated section, Data Replication to reorganize the content for better understanding and coherence.
Oct-25-2021	NA	Added the Pipeline frequency information in the Data Replication section.
