Pipedrive (Edge)

Configure Pipedrive as a Source in your Pipeline

Perform the following steps to configure your Pipedrive Source:

1. Click Pipelines in the Navigation Bar.

2. Click + Create Pipeline in the Pipelines List View.

3. On the Select Source Type page, select Pipedrive.

4. On the Select Destination Type page, select the type of Destination you want to use.

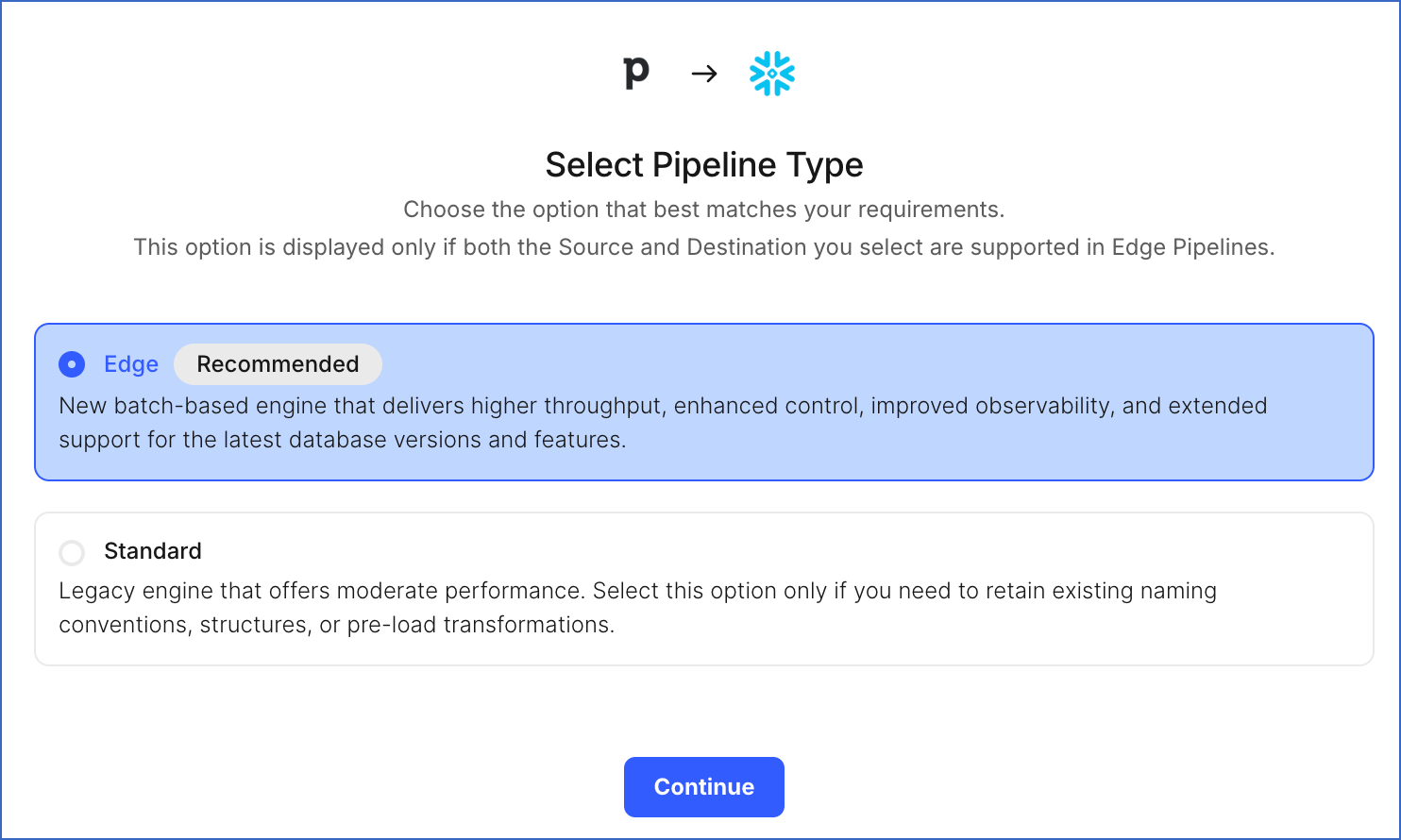

5. On the Select Pipeline Type page, click Edge, and then click Continue.



   This page appears only if the selected Destination type is supported in Edge and your team has an existing Pipedrive Pipeline with the same Destination type. Otherwise, you can proceed to create an Edge Pipeline.

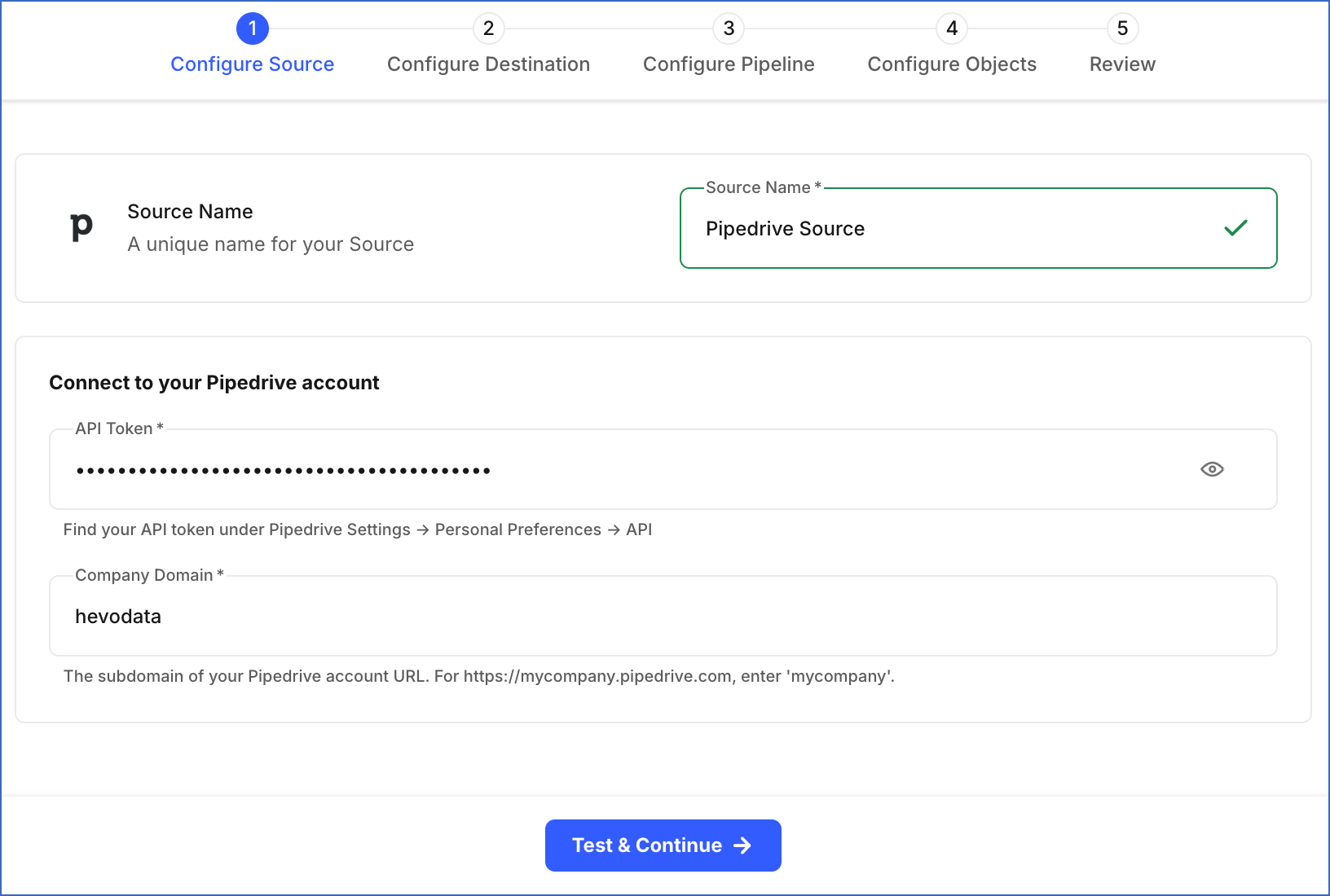

6. In the Configure Source screen, specify the following:



   • Source Name: A unique name for your Source, not exceeding 255 characters. For example, Pipedrive Source.

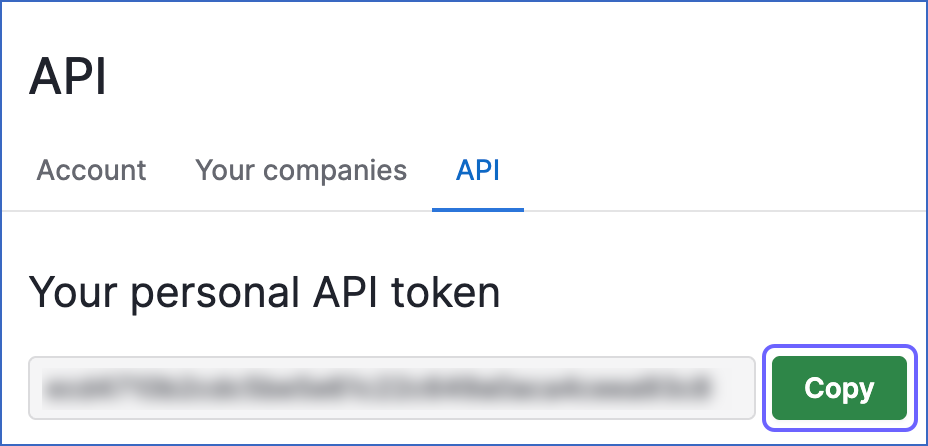

   • API Token: Your Personal API Token that you obtained from your Pipedrive account to allow Hevo to access your data.

   • Company Domain: Your Pipedrive company subdomain. This is the part before .pipedrive.com in your Pipedrive URL. For example, if your URL is https://mycompany.pipedrive.com, enter mycompany. This value cannot be changed after the Pipeline is created.

7. Click Test & Continue to test the connection to your Pipedrive Source. Once the test is successful, you can proceed to set up your Destination.

---

Data Replication

Hevo replicates data for all the objects selected on the Configure Objects page during Pipeline creation. By default, all supported objects and their available fields are selected. However, you can modify this selection while creating or editing the Pipeline.

Selecting a parent object automatically includes all its associated child objects for replication. Child objects cannot be selected or deselected individually.

Hevo ingests the following types of data from your Source objects:

• Historical Data: The first run of the Pipeline ingests all available historical data for the selected objects and loads it into the Destination.

• Incremental Data: Once the historical load is complete, new and updated records for objects are ingested as per the sync frequency.

For the following objects, Hevo ingests only the incremental data in subsequent Pipeline runs using the update_time timestamp field:

• Activity
• Activity Attendees
• Activity Participant
• Deal History
• Organization
• Person
• Person Email
• Person Phone
• Product
• Product Price
• File
• Lead History
• Note

For all other objects, Hevo ingests the entire data during each Pipeline run.

Pipedrive currently enforces a daily API request limit. If this limit is exceeded, a rate limit exception occurs. To understand how Hevo handles such scenarios, read Handling Rate Limit Exceptions.

Note: You can create a Pipeline with this Source only using the Merge load mode. The Append mode is not supported for this Source.

---

Schema and Primary Keys

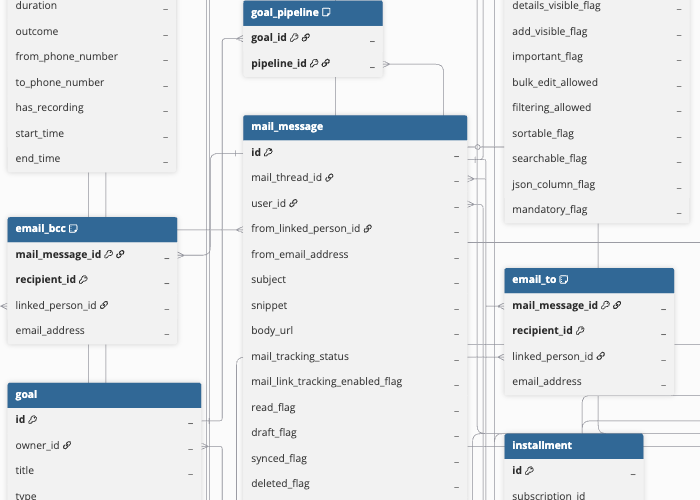

Hevo uses the following schema to upload the records to the Destination. For a detailed view of the objects, fields, and relationships, click the ERD.

---

Data Model

The following is the list of tables (objects) that are created at the Destination when you run the Pipeline:

---
