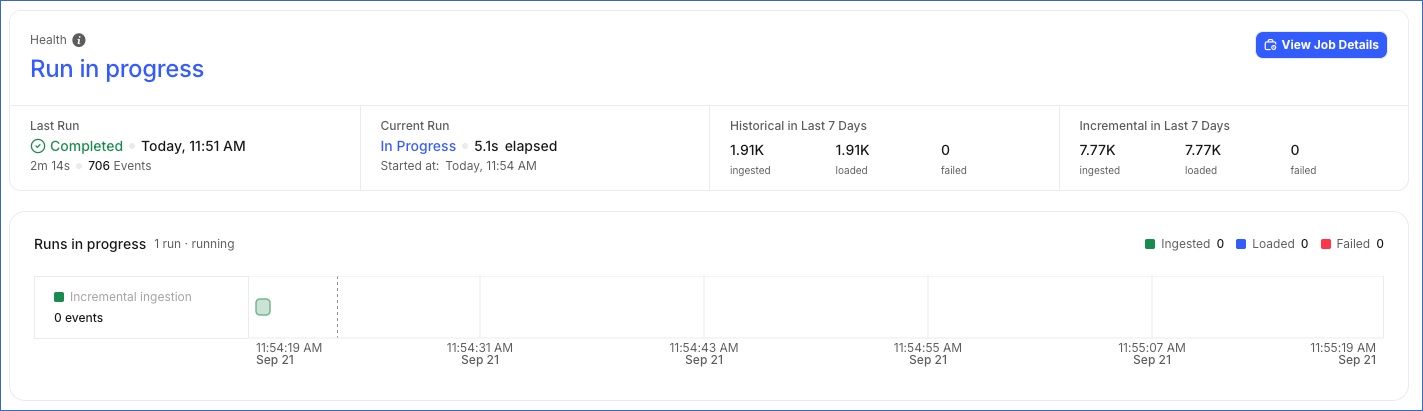

Pipeline Overview (Edge)

The Overview tab provides a detailed view of your Pipeline’s health and sync activity. You can use it to check the Pipeline’s status, identify runs in progress, and view recent ingestion, loading, and failure activity.

The Overview tab consists of two sections:

• Health: Provides information about the current state of the Pipeline, including details of the last, current, and upcoming runs, as well as activity of the last 7 days.

• Runs in progress: Provides information about ingestion and load activity for currently running jobs, including the number of Events ingested, loaded, and failed.

You can access the Overview tab from the Pipeline Detailed View.

---

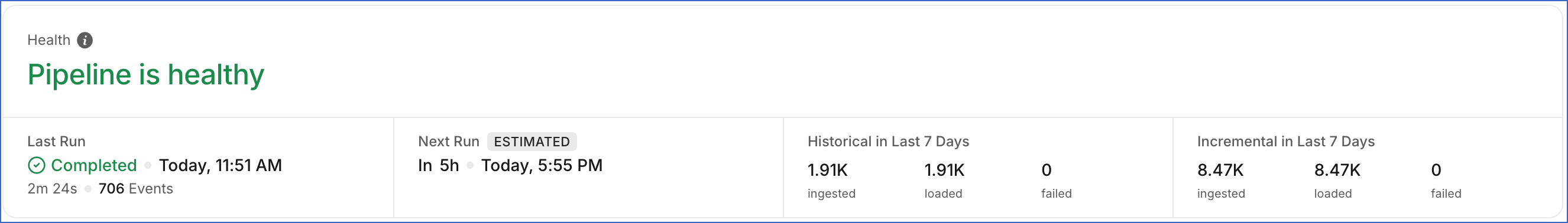

Understanding Pipeline Health

This section displays the current state of your Pipeline, along with details of its recent and upcoming runs.

Depending on the Pipeline state, the following information is displayed:

• Last Run: The status of the most recent run, including its duration, completion time, and the number of Events ingested.

• Next Run: The estimated time of the next scheduled run, based on the Pipeline’s sync frequency. While a run is in progress, this field is renamed to Current Run and displays the elapsed and start times of the active run.

• Historical in Last 7 Days: The number of Events ingested, loaded, and failed during the historical Pipeline run over the last 7 days.

• Incremental in Last 7 Days: The number of Events ingested, loaded, and failed during incremental Pipeline runs over the last 7 days.

Based on the Pipeline’s state, the health of the Pipeline can be any of the following:

---

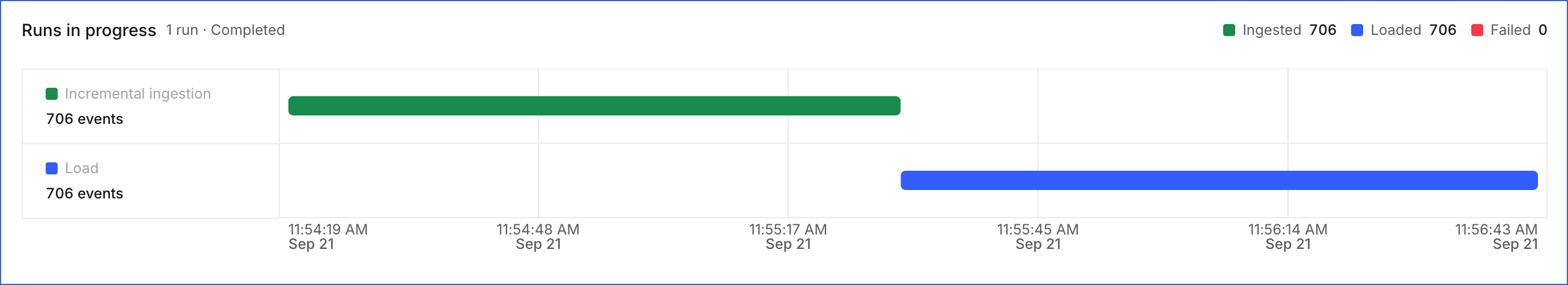

Understanding Runs in Progress

This section provides a visual representation of Pipeline activity, showing which runs are currently in progress and how many Events have been processed.

The section displays:

• The number of runs and their status.

• The total number of Events ingested, loaded, and failed across the runs.

• The type of activity taking place, such as incremental ingestion, historical ingestion, load, or failure, and the number of Events associated with each activity.

If no run is currently in progress, the section displays No jobs in progress. When a run starts, its ingestion and load activity appear in this section.

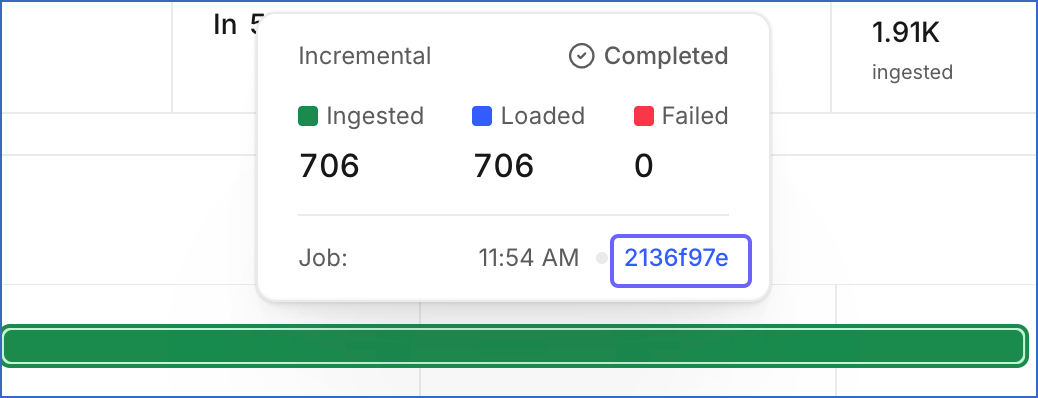

Viewing Run Details

You can click a run in the chart to view the following information:

• The run type, such as Incremental or Historical.

• The current status of the run.

• The job ID of the run.

The job ID displays only its first 8 characters. Click the job ID to open the corresponding run details on the Job History tab of the Pipeline.

---
